所有尺寸技术要求可以根据客户要求设计制造
输出电缆:多重接触连接器
二极管:10A, 100V旁路肖特基二极管
结构:正面为3.2mm高透光率的低铁刚化绒面玻璃，背材为TPT，胶膜为EVA
框架:型号为6063T5，镀氧化膜铝合金 |
| 组件型号 |
峰值功率
(WP) |
开路电压
(V) |
工作电压
(V) |
短路电流
(A) |
工作电流
(A) |
外形尺寸
(mm) |
重量
(Kg) |
KM260(34)1965×990×50㎜ |
260W |
45.3V |
35.8V |
7.98A |
7.26A |
1965×990×50 |
24.3㎏ |
KM240(34)1965×990×50㎜ |
240W |
44.6V |
34.5V |
7.64A |
6.95A |
1965×990×50 |
24.3㎏ |
KM220(34)1965×990×50㎜ |
220W |
44.3V |
34.2V |
7.07A |
6.43A |
1965×990×50 |
24.3㎏ |
KM200(30)1650×990×50㎜ |
200W |
36.5V |
29.7V |
7.74A |
6.73A |
1650×990×50 |
19.4㎏ |
KM180(27)1480×990×50㎜ |
180W |
33.4V |
28.2V |
7.54A |
6.66A |
1480×990×50 |
14.6㎏ |
KM170(27)1480×990×50㎜ |
170W |
33.1V |
27.8V |
6.75A |
6.11A |
1480×990×50 |
14.6㎏ |
KM160(27)1480×990×50㎜ |
160W |
32.8V |
27.4V |
6.54A |
5.84A |
1480×990×50 |
14.6㎏ |
KM130(17)1480×680×35㎜ |
130W |
21.6V |
17.5V |
8.34A |
7.42A |
1480×680×35 |
9.6㎏ |
KM80(17)980×680×35㎜ |
80W |
21.3V |
17.5V |
5.12A |
4.57A |
980×680×35 |
7.9㎏ |
KM60(17)1020×510×35㎜ |
60W |
21.2V |
17.1V |
3.86A |
3.51A |
1020×510×35 |
6.8㎏ |
KM40(17)710×510×28㎜ |
40W |
21.1V |
17.1V |
2.56A |
2.33A |
710×510×28 |
5.8㎏ |
KM25(17)690×340×28㎜ |
25W |
21.1V |
17.1V |
1.59A |
1.46A |
680×340×28 |
3.9㎏ |
KM20(17)570×340×28㎜ |
20W |
21.1V |
17.1V |
1.35A |
1.17A |
570×340×28 |
3.5㎏ |
KM15(17)510×340×28㎜ |
15W |
21.1V |
17.1V |
1.05A |
0.87A |
510×340×28 |
2.8㎏ |
KM10(17)400×270×28㎜ |
10W |
21.1V |
17.1V |
0.64A |
0.58A |
400×270×28 |
2.4㎏ |
KM5 (17)340×190×28㎜ |
5W |
21.1V |
17.1V |
0.38A |
0.31A |
340×190×28 |
1.2㎏ |

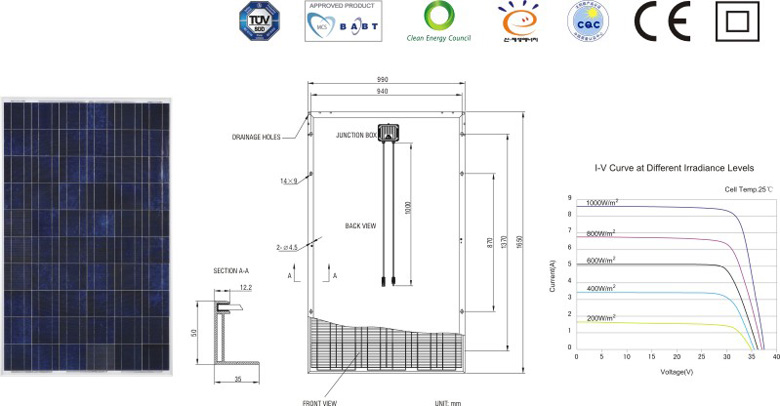

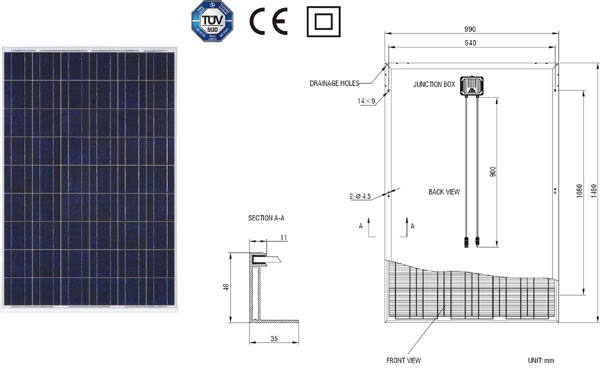

| 组件型号 |
L |
W |
A |
C |
D |
| KM240(34)1965×990×50㎜ |
1965 |
990 |
982 |
950 |
6×8 |
| KM200(30)1650×990×50㎜ |
1650 |
990 |
825 |
950 |
6×8 |
| KM180(27)1480×990×50㎜ |
1480 |
990 |
740 |
950 |
6×8 |
| KM130(17)1480×680×35㎜ |
1480 |
680 |
740 |
650 |
6×8 |
| KM80(17)980×680×35㎜ |
980 |
680 |
490 |
650 |
6×8 |
| KM60(17)1020×510×35㎜ |
1020 |
510 |
510 |
480 |
6×8 |
| KM40(17)710×510×28㎜ |
710 |
510 |
355 |
490 |
6×8 |
| KM25(17)680×340×28㎜ |
690 |
340 |
345 |
320 |
6×8 |
| KM20(17)570×340×28㎜ |
570 |
340 |
285 |
320 |
6×8 |
| KM15(17)510×340×28㎜ |
510 |
340 |
255 |
320 |
6×8 |
| KM10(17)400×270×28㎜ |
400 |
270 |
200 |
180 |
6×8 |
| KM5 (17)340×190×28㎜ |
340 |
190 |
170 |
150 |
6×8 |
|
 |
|
